redefining wireless
infrastructure

SMALL CELL
Open RAN
Macro Cell
Satellite
Communication

Small Cell

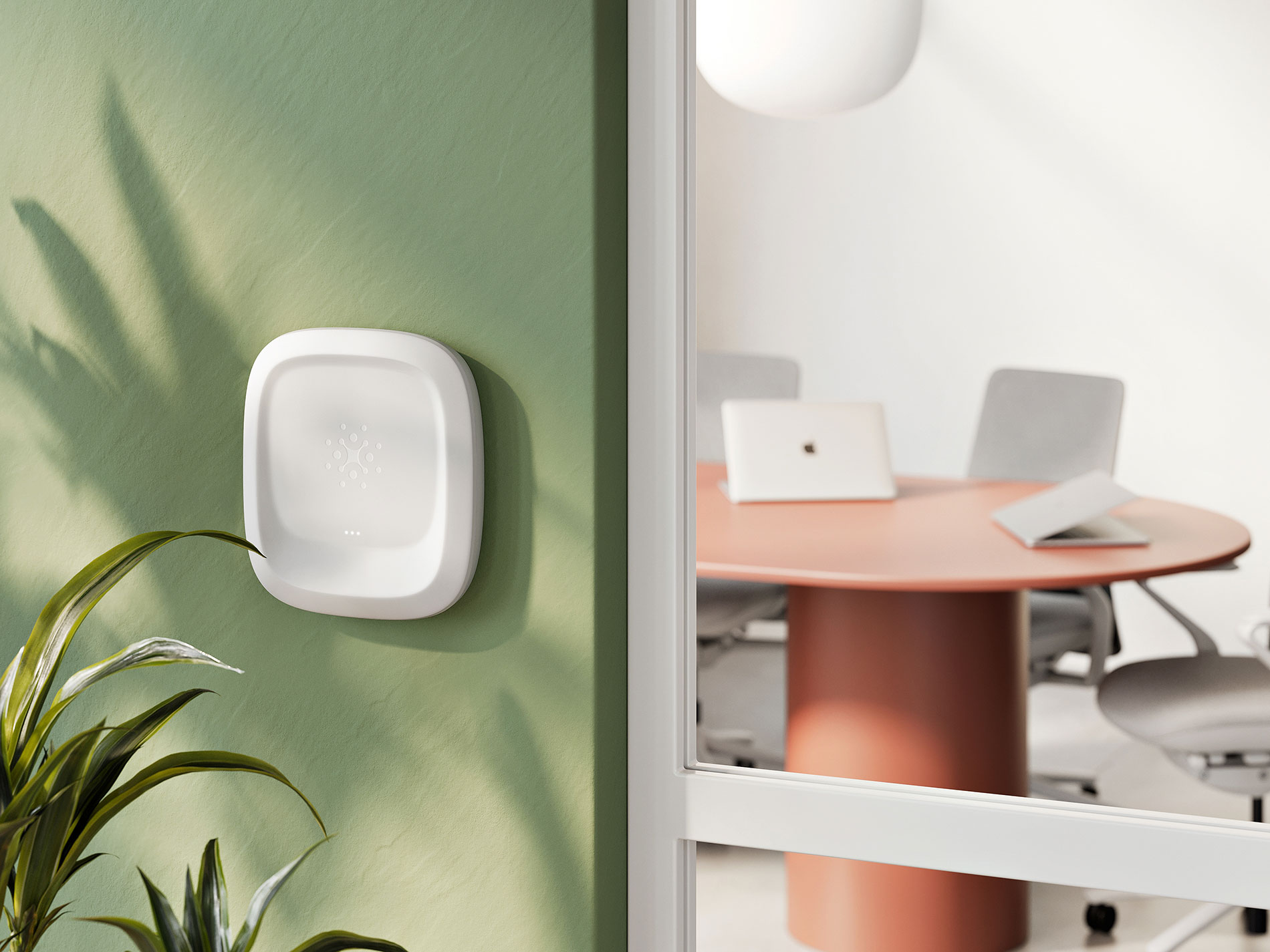

ForCampus_Network

For Campus Network

Dual Mode 5G + LTE Private Cellular Network

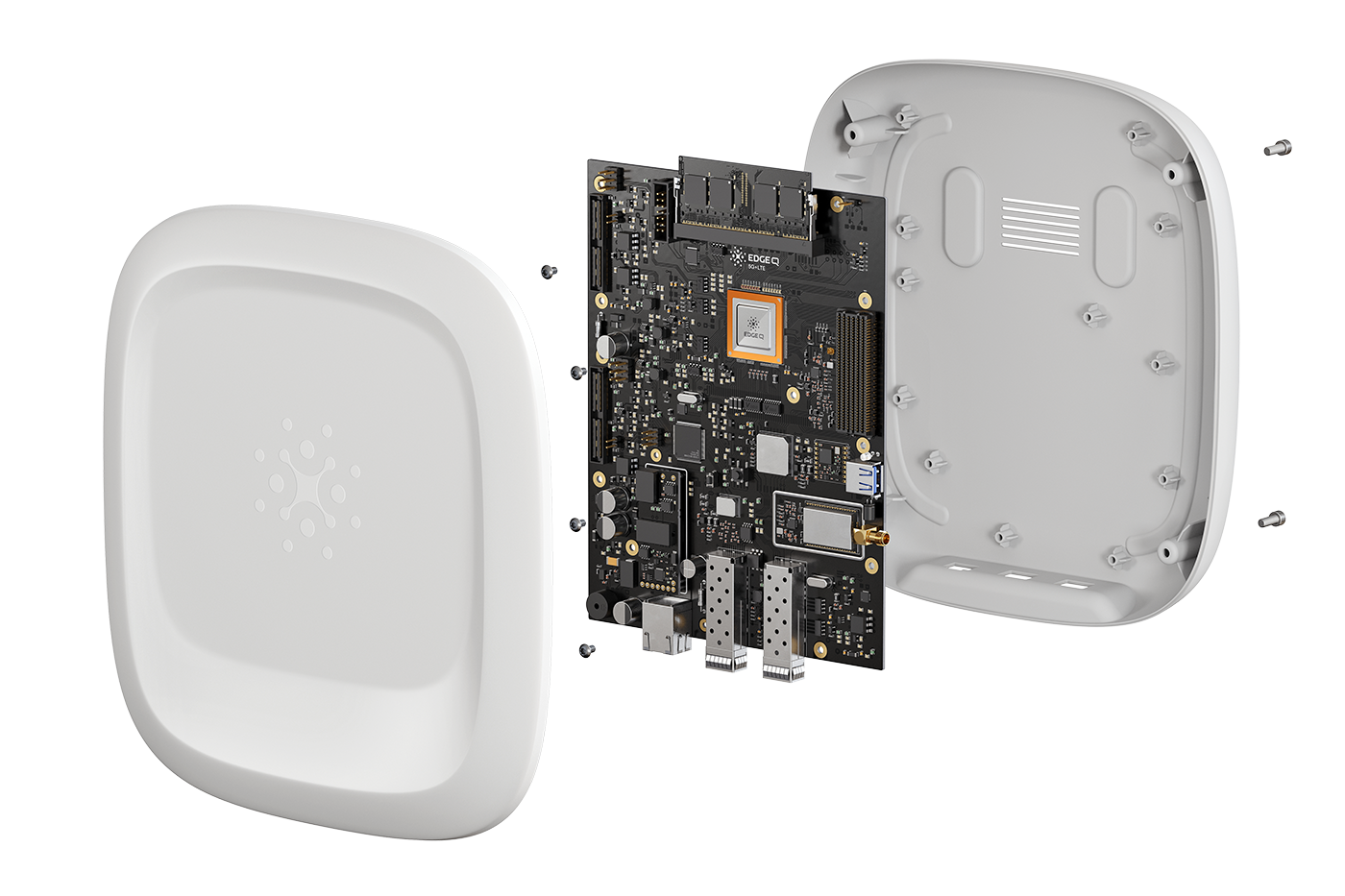

ExplodedView_Indoor_Small

Specs

  • Antenna

    2T2R, 4T4R, 8T8R
    Sub-6 bands, mmWave

  • Performance

    Up to 5.0 Gbps user rate

  • Timing Sync

    1588V2, GPS, NDT

  • RF Output Power

    Up to 24 dBm per tx chain

  • EdgeQ Differentiators

    Integrated CPU + NPU
    Dual Mode LTE + 5G

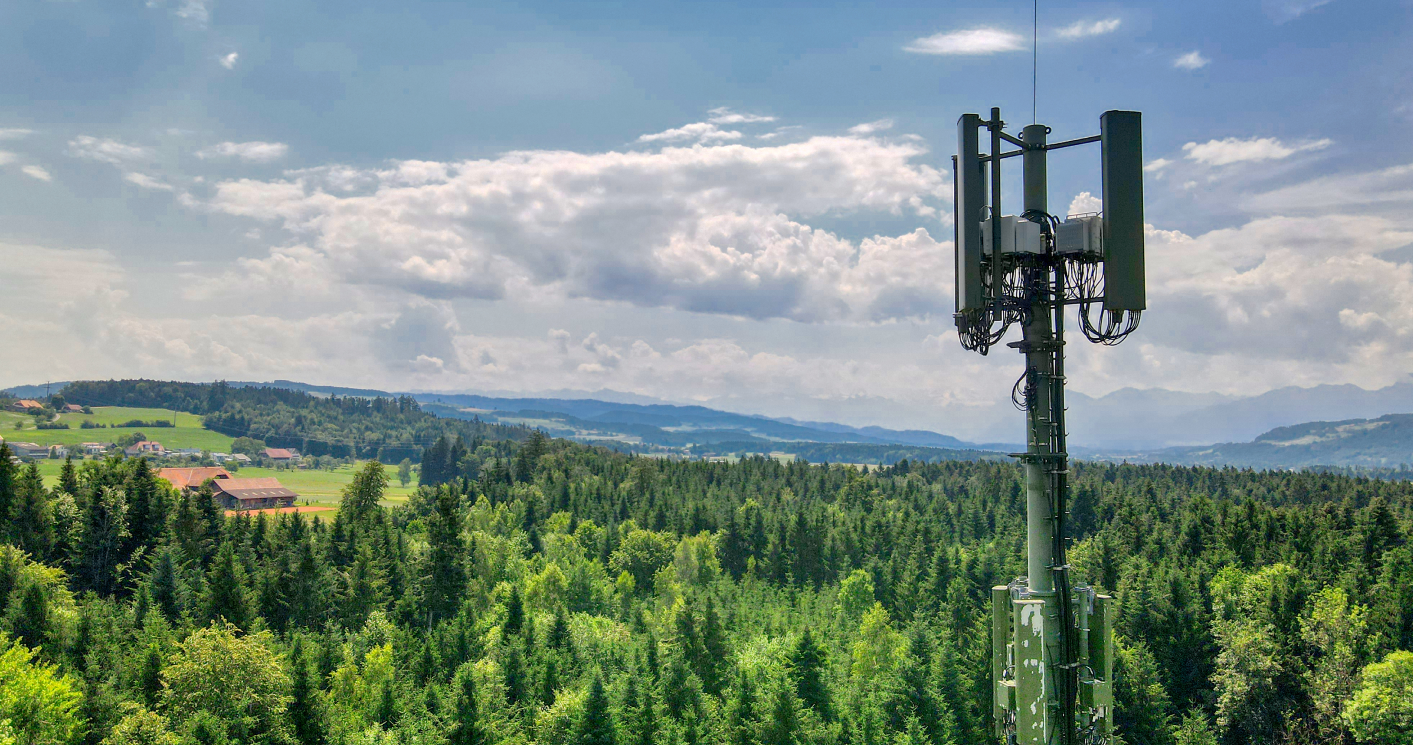

Open RAN Macro Cell

openranmarco_img

For Base Stations

5G + LTE MaMIMO Macrocell

Acceleration_Card

Specs

  • Massive MIMO

    Up to 64TRX

  • ORAN Interface

    Fronthaul: split option 7.2 over eCPRI
    L1-L2: split option 6, FAPI over PCIe

  • User Capacity

    10,000 users per card

  • Timing Sync

    1588V2, GPS, SyncE

  • Synchronization Topology

    LLS-C1, LLS-C2, LLS-C3

  • EdgeQ Differentiators

    Dual Mode LTE + 5G
    Integrated timing sync
    <50W card power

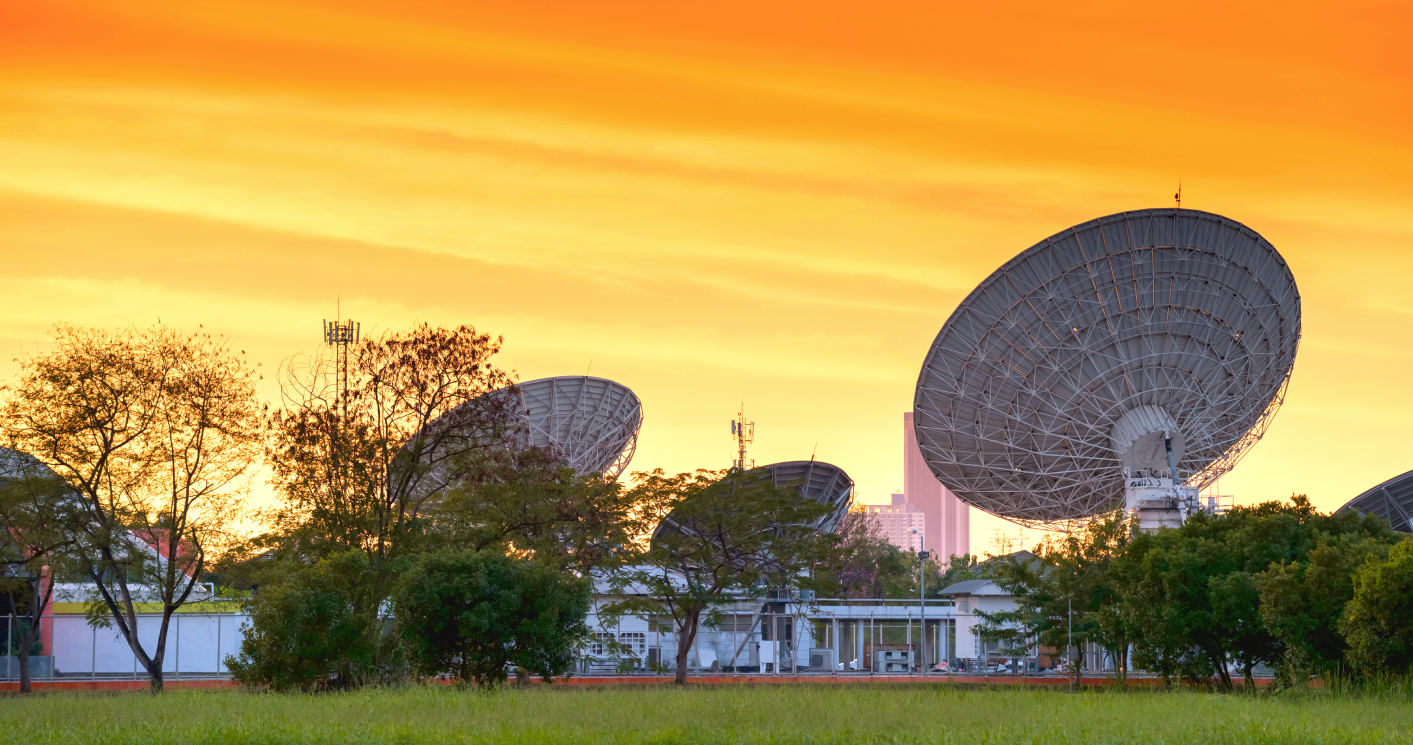

Satellite Communication

Satellites_main_img

For Satellites

5G Non-Terrestrial Networks for Mobile Broadband

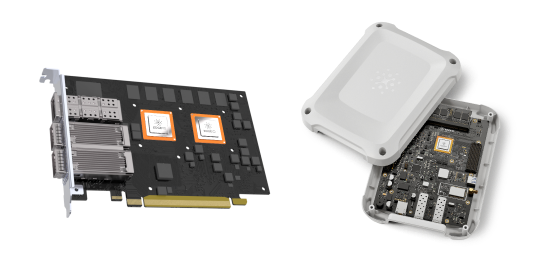

Satellites_imgs

Specs

  • Frequency

    L, S, C-Bands & Ka, Ku-Bands

  • Satellite Payload

    RU/DU Regenerative Payload
    NTN Gateway

  • Massive MIMO

    32T32R / 64T64R Phased Array
    Beam hopping

  • SW Defined Radio

    5G NR NTN
    Large number of carriers for IOT
    Waveform customization
    non-5G NR modulations

  • EdgeQ Differentiators

    Custom PHY extensions
